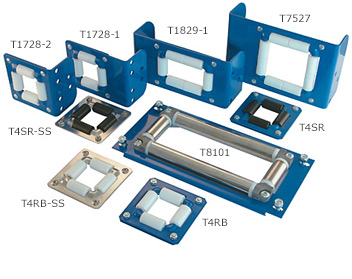

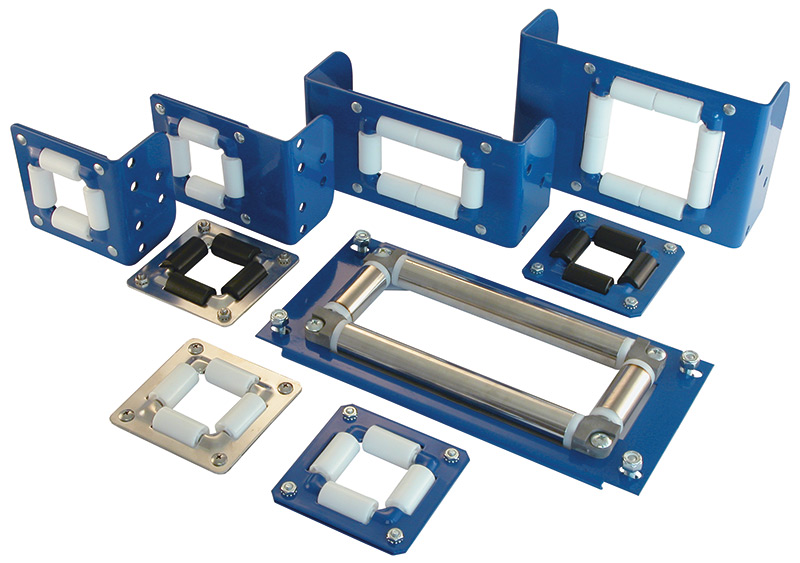

Accessories - Roller Guides
T4RB Face mounted roller guide, for use with hose up to 3⁄4" (19mm) internal bore. Ideal for use through panels ect. Also available with solid Rollers (T4SR)
T1728-1 Right angled roller guide, for use with hose up to 3⁄4" (19mm) internal bore. These guides are ideal for payout along walls ect. Also available with solid rollers, and in stainless steel. (T1728 & T1728-1-SS).
T8101 Large four way roller assembly for use on cabinet/door openings, or similar locations where sharp edges may cut or damage the hose being handled. Supplied as standard on SP, DP series reels. Hoses up to 11⁄2" Internal bore.
T1829-1 Truck series roller guide for use with hose up to 1" internal bore. Right angles edges allow both ends to be fixed. Also available with solid rollers and in stainless steel (T1828-1 & T1829-1-SS).
T7527 These roller guides have two rollers horizontally and two vertically. This enables large bore hoses up to 11⁄4" bore to be handled easily. Supplied as standard on SHL-N-635
| Model Reference |
Material | Rollers | Guide dimensions mm W x H x D |
Max hose size ID |
| T4RB | Powder coated | Nylon hollow | 101.6 x 101.6 x N/A | 19mm |
| T4SR | Powder coated | Nylon solid | 101.6 x 101.6 x N/A | 19mm |
| T4RB-SS | Stainless steel | Nylon hollow | 101.6 x 101.6 x N/A | 19mm |
| T4SR-SS | Stainless steel | Nylon solid | 101.6 x 101.6 x N/A | 19mm |
| T1728-1 | Powder coated | Nylon hollow | 136.9 x 101.6 x 101.6 | 19mm |
| T1728-1-SS | Stainless steel | Nylon hollow | 136.9 x 101.6 x 101.6 | 19mm |
| T1728-1 | Powder coated | Nylon hollow | 136.9 x 101.6 x 101.6 | 19mm |
| T8101 | Powder coated | Stainless Steel | Variable | 38mm |
| T1829-1 | Powder coated | Nylon hollow | 207 x 101.6 x (L)76.2 (R) 68.6 | 25mm |
| T1829-1-SS | Stainless steel | Nylon hollow | 207 x 101.6 x (L)76.2 (R) 68.6 | 25mm |
| T7527 | Powder coated | Nylon hollow | 200 x 136 x 77 | 32mm |
