KEY FEATURES

• Heavy gauge 304 grade stainless steel construction
• Heavy duty rolled and ribbed side discs for strength and rigidity
• Supplied with heavy duty 4 way roller guide for reduction in hose wear
• Externally mounted spring housing
• Suitable for floor, wall and bench mounting
• Compact design ideal for confined spaces
• 2 year manufacturer’s warranty
• Supplied as bare reel. Click here for information on hose reel kits.

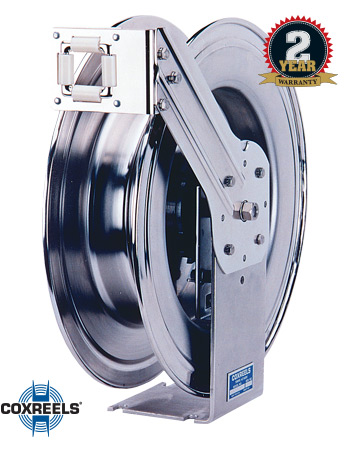

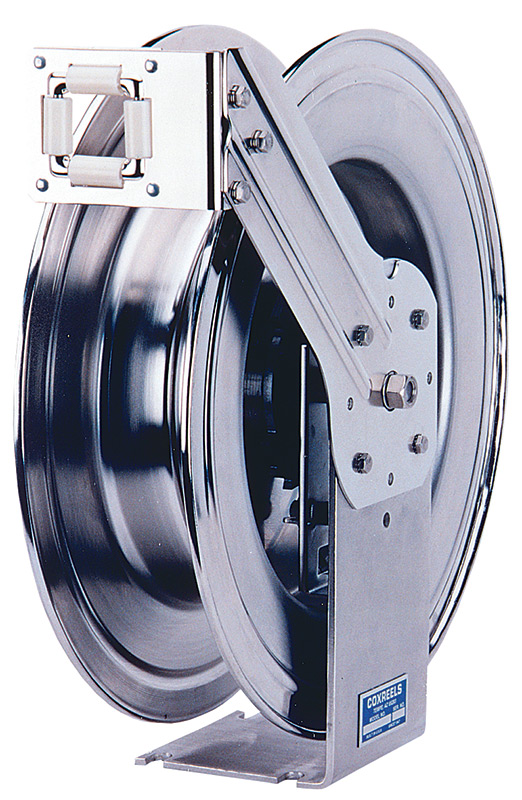

Coxreel stainless steel spring rewind reels

Coxreel SHL & T Series stainless steel spring rewind hose reels are constructed of high quality electro-polished 304 grade stainless steel with stainless steel fluid paths. They offer a clean and non-corrosive performance in applications such as food and chemical processing, offshore, marinas and in areas wherever rust or corrosion are likely to occur.

APPLICATIONS

Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Paper Mills ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Food Grade Wash down.

HOW DOES IT COMPARE?

Coxreels spring rewind reels have an electro-polished stainless steel finish. The side discs are spun robotically with rolled edges providing additional strength, safety, and durability. The cartridge-style spring motor is enclosed and factory tuned & matched. The capacities range ifrom 25ft up to 100ft in 1/2” I.D. Hose, 25 ft to 50 ft in 3/4” I.D. Hose. Maximum working pressure up to 3000 psi depending on the type of hose being used. 2 year manufacturer's warranty, spare parts available from stock.

OVERVIEW

Coxreels have been manufacturing hose reels since 1923, they are one of the worlds leading hose reel companies offering a premium quality product range. The SHL & T Series Spring rewind Hose Reels are constructed from heavy-gauge 304 stainless steel, with stainless steel fluid paths. Non corrosive stainless steel spring, pawl,and zinc plated ratchet. The design combines strength and functionality with aesthetics to give a tough, first-rate product, which will give trouble free service for many years.
