KEY FEATURES

• Heavy gauge 316 grade stainless steel construction
• Swept riser assembly for easy installation of hose media
• Direct manual rewind
• 360º payout and retrieval directions
• Fully rolled side discs for strength, safety and rigidity
• Pedestal side mount
• Lightweight and compact design
• 2 year manufacturers warranty
• Supplied as bare reel. Click here for information on hose reel kits.

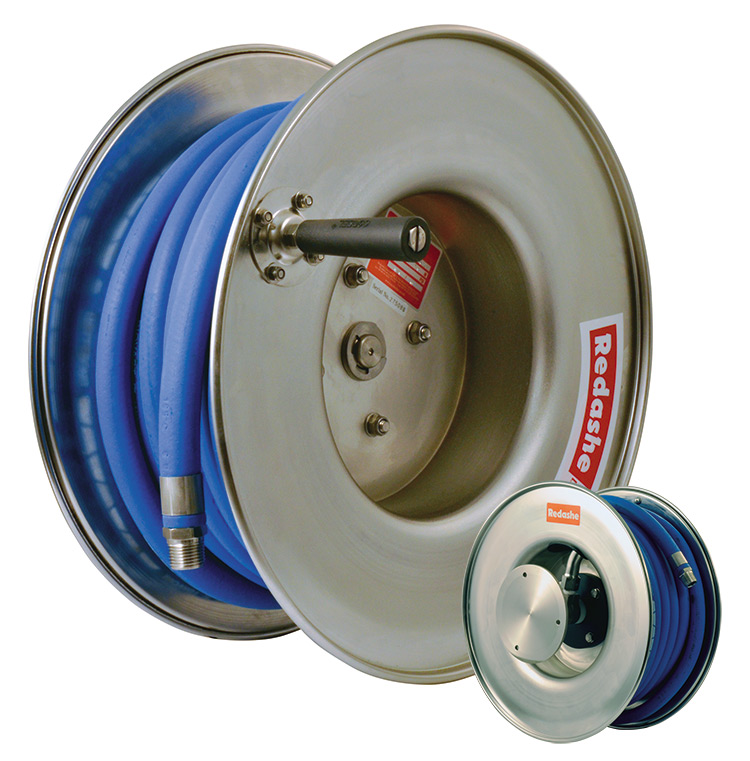

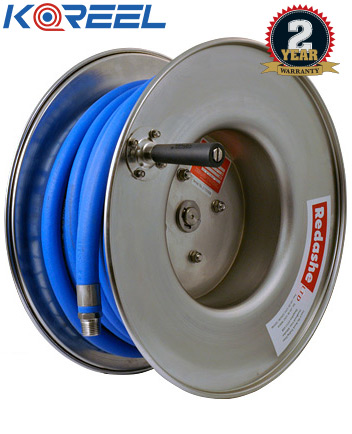

Koreel CCMHR-1320SS 316 stainless steel side mount manual rewind reel

The CCMHR-SS manual rewind hose reels is manufactured in 316 grade stainless steel. This particular reel was initially designed for pedestal side mount applications in marinas, but can be used in many different environment where conditions are extremely harsh.

APPLICATIONS

Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Food Grade Wash down.

HOW DOES IT COMPARE?

The CCMHR-1320SS is a side mount reel manufactured in heavy duty 316 Stainless Steel, with a maximum working pressure is 300 psi m(20 bar), and a capacity for 20 mtr x 1/2” I.D. Hose.

OVERVIEW

This compact excellent quality lightweight 316 grade quality stainless steel reel manufactured by Koreel. The dimensions are W30 x D40 x H40CM, so ideal for areas where space is limited The reel can be pedestal or wall mounted, and used to transfer drinking water, oil, diesel, ect. Because the reel is made in 316 grade stainless steel it makes it suitable for use in the harshest of environments.
