KEY FEATURES

• Constructed from heavy gauge 304 grade stainless steel
• Body constructed in nickel-plated milled brass and shaft constructed in stainless steel
• Full flow swivel assembly for maximum product delivery
• Fitted with viton seals as standard
• Swept riser assembly for easy hose installation
• Smooth and positive direct crank design
• Swivels have a twin O ring design for extended trouble free service
• Direct hand crank design
• Anti-slip rubber feet to prevent movement when pulling off the hose
• 2 year manufacturers warranty
• Supplied as bare reel. Click here for information on hose reel kits
• Ideally suited for wash down applications in the food industry, chemical manufacturing, marine & offshore applications

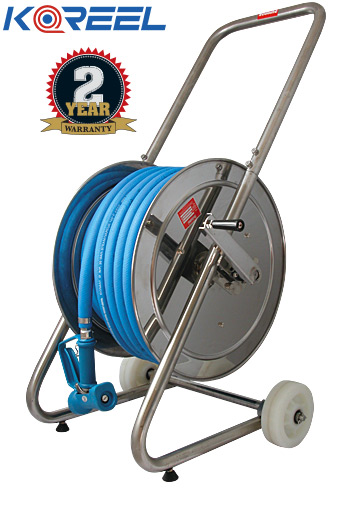

Koreel CCPOR-1930 stainless steel portable reel

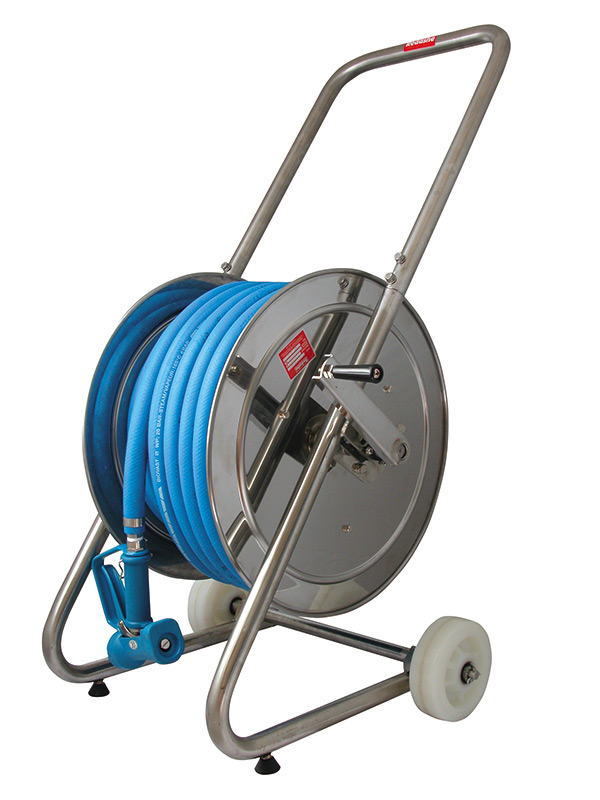

The Redashe CCPOR stainless steel trolley mounted hose reels are ideal for use in wash down areas where it is necessary to move hose and reel from one location to another. Constructed in a heavy gauge, 304 grade stainless steel, with a semi polished finish.

APPLICATIONS

Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medi‐ cal Services ∙ Hygienic Environments ∙ Paper Mills ∙ Meat Packing ∙ Chemi‐ cal ∙ Dairies ∙ Food Processing Plants ∙ Pharmaceutical manufacturing ∙ Food Grade Wash down

HOW DOES IT COMPARE?

The CCPOR portable reel is constructed in 304 Stainless Steel. There are two models available, 45 mtr x 12.5 mm I.D. or 30 mtr x 19 mm I.D. Maxi- mum working pressure 700 psi. The side discs have added rigidity and strength with rolled edges and ribbed discs. The swivel assembly is exter- nally mounted making it easy to maintain, two ’O’ rings are fitted on each side of the flow path for longer trouble free use, Viton seals are fitted as standard, the shaft is stainless steel, the swivel body is nickel plated milled brass, direct crank handle, anti slip rubber feet prevents reel movement when the hose is pulled out., 150 mm wheels. 2 year warranty.

OVERVIEW

They function well in the most harsh conditions and offer a clean and non- corrosive performance in applications such as food and chemical process- ing, offshore, marinas and in areas wherever rust, corrosion are likely When in motion all the weight of the reel and hose is directly over the axle, which saves labour, taking much less effort to move hose and reel from site to another.
