KEY FEATURES

• Heavy gauge 304 grade stainless steel construction
• Large 4-way roller guide to reduce wear of hose media
• Rolled and ribbed side discs for strength and rigidity
• Externally mounted spring housing
• Floor, wall or bench mounting options
• Compact design - ideally for use in confined spaces
• 2 year manufacturer’s warranty
• Supplied as bare reel. Click here for information on hose reel kits.

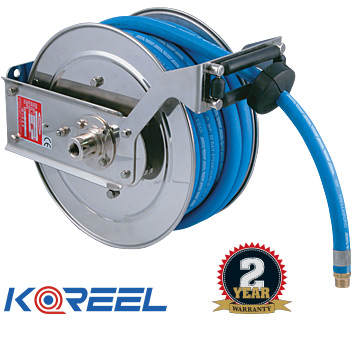

Koreel CTWA stainless steel spring rewind reels

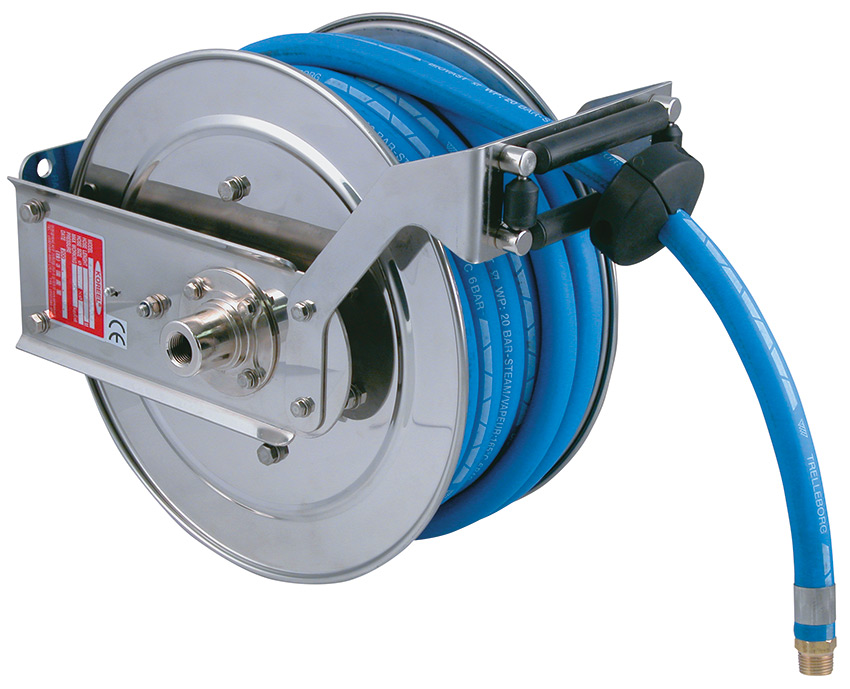

The CTWA series stainless steel spring rewind hose reel is construct- ed in 304 grade, heavy gauge, stainless steel, and has a polished fin- ish. The side discs have added rigidity and strength as the edges are rolled and the discs are ribbed. The spring motor is located in its own externally mounted canister and fully lubricated. The swivel assembly is also externally mounted for ease of maintenance, designed with two ’O’ rings on each side of the flow path for longer trouble free use, Viton seals are fitted as standard.

APPLICATIONS

Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Pa‐ per Mills ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Pharmaceutical manufacturing ∙ Food Grade Wash down.

HOW DOES IT COMPARE?

Aesthetically pleasing compact reel with a small footprint, ideal for use where space is limited. The reel will accommodate 15 mtr x 12.5 mm I. D. Hose (1⁄2” ID) . The maximum working pressure is 300 psi . 2 year manufacturers warranty.

OVERVIEW

The CTWA is a compact reel manufactured to a very high standard from 304 grade stainless steel. Its compact size , particularly on height allow it to be mounted in areas where most other reels with the same capacity would not fit.
