KEY FEATURES

• Constructed from 304 grade stainless steel
• ATEX approval on request (additional charge)
• Drum is double supported for strength and rigidity
• Adjustable full width roller guides
• Suitable for pressures up to 3000psi
• Durable nylon hub assemblies
• Adjustable and ribbed side arms for added strength and rigidity
• Suitable for floor, wall, ceiling or mobile mounting options
• Optional stainless steel wall brackets available - quote CST30
• Supplied as bare reel. Click here for information on hose reel kits.

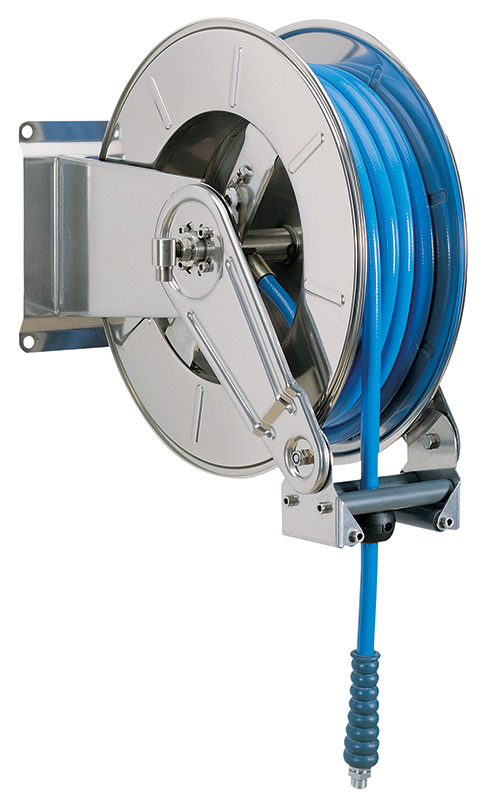

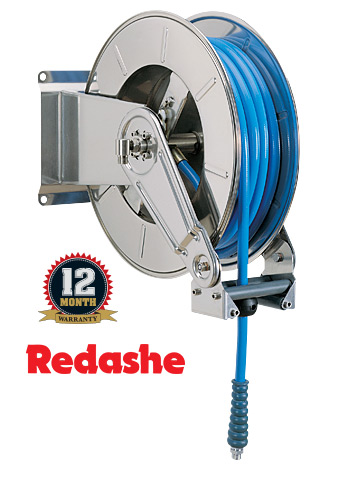

Redashe 3500/3501 series stainless steel spring rewind reels

The Redashe CAV3500 and CAV3501 Series Retractable Stainless Steel hose reels are highly regarded combining strength and functionality with aesthetics to give a tough, good looking, long – life product. Designed for use in harsh, corrosive environments or where hygiene is of primary importance.

APPLICATIONS

Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Paper Mills ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Food Grade Wash down, and many more.

HOW DOES IT COMPARE?

The Redashe CAV3500 Stainless Steel hose reel has a maximum working pressure of 3000 psi (200 bar), and will accommodate either 35 m x 3/8” I.D. hose or 35 m x 1/2” I.D. Hose. The CAV3501 model accommodate 20 m x 1/2” I.D. Hose and has a maximum working pressure of 300 psi (20 bar)3/4” or 1” internal diameter hose.3/4”13mto40m, in1”from8mto30m,dependingon which model. The CAV6000 is for longer.

OVERVIEW

Redashe Stainless Steel Spring Rewind Hose reels are constructed in 304 grade stainless steel, the drum is double supported for extra strength, the swivel is made from 303 grade and the shaft is ground and hardened from 416-420 grade SS. The maximum working pressure is 200 (400 bar reels available on request)., maximum working temperature 150°C. Reels can be made from 316 grade stainless steel on request, also ATEX approved on request, supplied with the relevant certification. O-ring’s are EPDM.
