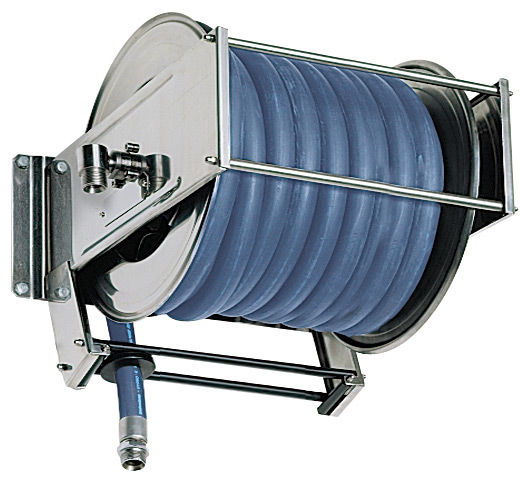

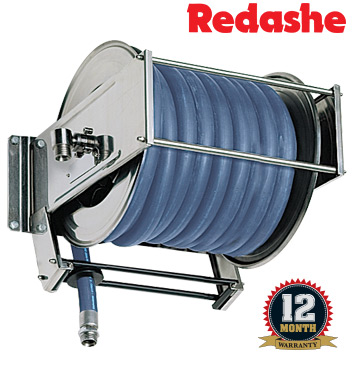

The Redashe CAV5000 Retractable Stainless Steel hose reel combines strength and functionality with aesthetics to give a tough, good looking, long – life product. Designed for use in harsh, corrosive environments or where hygiene is of primary importance.
Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Paper Mills ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Food Grade Wash down, and many more.
The Redashe CAV5000 Stainless Steel hose reel has a maximum working pressure of 300 psi (20 bar), and will accommodate either 30 m x 3/4” I.D. hose or 25 m x 1” I.D. Hose. The maximum working pressure is 300 psi (20 bar), 80 bar on request.
Redashe Stainless Steel Hose reels are constructed in 304 grade stainless steel, the drum is double supported for extra strength, the swivel is made from 303 grade and the shaft is ground and hardened from 416-420 grade SS. The maximum working pressure is 200 (400 bar reels available on request), maximum working temperature 90°C. Reels can be made from 316 grade stainless steel on request, also ATEX approved on request, supplied with the relevant certification. O-ring’s are EPDM.
| Model Reference |
I.D. | Max PSI |
Swivel In/Out |
Reel Dimensions mm W x H x D |
Length | Weight kgs |
| CAV5000 | 3⁄4" | 300 | 1" M x 1" M | 520 x 550 x 530 | 30m | 40 |
| CAV5000 | 1" | 300 | 1" M x 1" M | 520 x 550 x 530 | 25m | 40 |
