KEY FEATURES

• Constructed from 304 grade stainless steel
• Durable nylon hub assemblies
• Drum is double supported for strength and rigidity
• Suitable for floor, wall, ceiling or mobile mounting option
• Simple design - easy to use
• Suitable for pressures up to 3000psi
• Supplied as bare reel. Click here for information on hose reel kits.

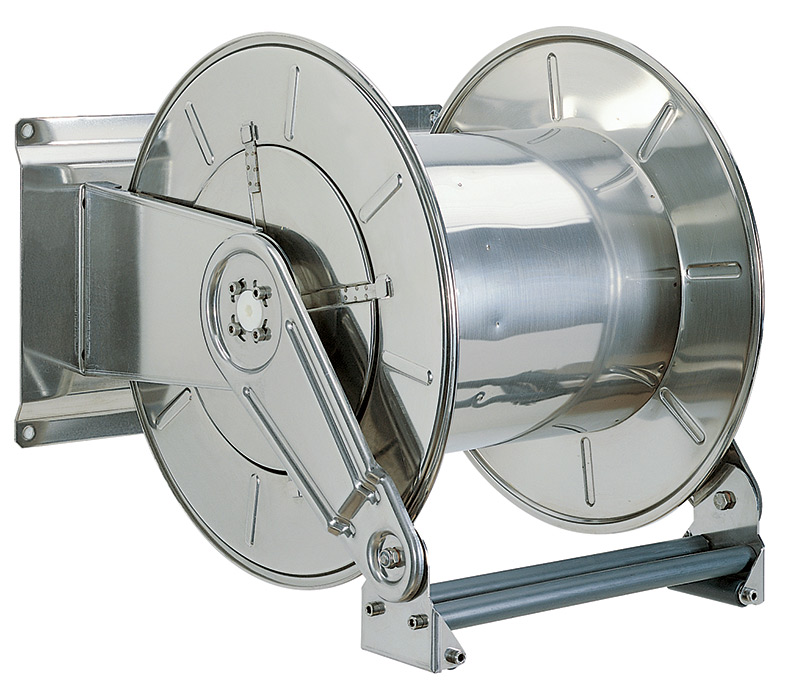

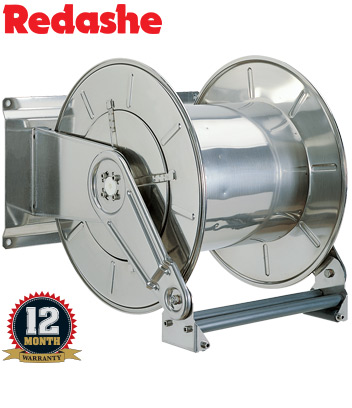

Redashe 1200/1300/6000 series stainless steel spring rewind reels

The Redashe CAV1200/1300/6000 and 6001 Series Retractable Stainless Steel hose reels are highly regarded combining strength and functionality with aesthetics to give a tough, good looking, long – life product. Designed for use in harsh, corrosive environments or where hygiene is of primary importance.

APPLICATIONS

Corrosive Environments ∙ Bottling Plants ∙ Manufacturing Plants ∙ Restaurants & Commercial Kitchens ∙ Water Treatment & Supply ∙ Medical Services ∙ Offshore ∙ Marine ∙ Hygienic Environments ∙ Paper Mills ∙ Meat Packing ∙ Chemical ∙ Dairies ∙ Food Processing Plants ∙ Food Grade Wash down, and many more.

HOW DOES IT COMPARE?

The Redashe CAV1200/1300/6000 & 6001 Series Retractable Stainless Steel hose reels are for larger internal diameter hoses and will accommodate either 3/4” or 1” internal diameter hose. In 3/4” 13 m to 40 m, and in 1” from 8 m to 30 m, depending on the model. The CAV6000 will acceither 60 m of 3/8” I. D. or 60 m of 1/2” I. D.

OVERVIEW

Redashe Stainless Steel Hose reels are constructed in 304 grade stainless steel, the drum is double supported for extra strength, the swivel is made from 303 grade and the shaft is ground and hardened from 416-420 grade SS. The maximum working pressure is 200 (400 bar reels available on request)., maximum working temperature 150°C. Reels can be made from 316 grade stainless steel on request, also ATEX approved on request, supplied with the relevant certification. O-ring’s are EPDM.
